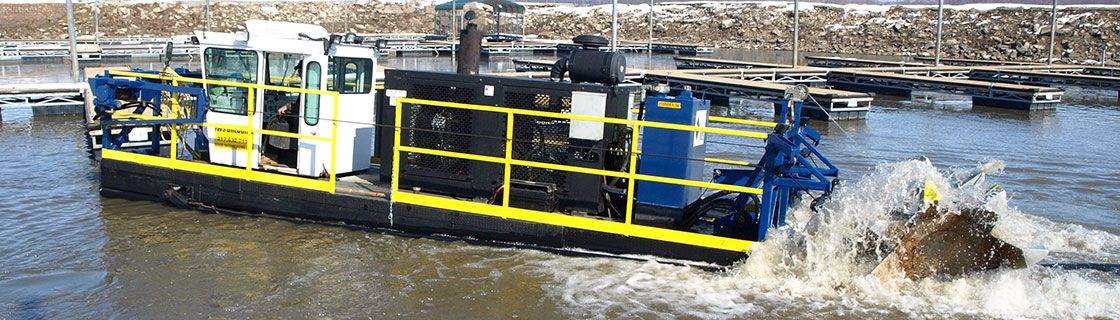

The Versi-Dredge is ideal for dredging in canals, lakes, and marinas where maneuverability is confined areas is an issue.

versi dredge

Like all Versi-Dredge systems the Starwheel Drive system allows the dredge to be completely self-propelled. It can be converted into a weed harvesting machine by simply switching out the standard cutterhead with the Weedmaster Cutterhead.

The LP (Low Pressure) pump is a fabricated steel pump with a rubber liner. It can be used in a variety of materials including abrasive sand. The unique LP pump design allows the Versi-Dredge to pass up to a 6" solid making it ideal for debris filled waterways.

The LP pump is known around the globe for being extremely versatile, easy to maintain / rebuild in the field, and hard to break.

5012 LP

Transportability: One truck transportable (fully assembled)
Propulsion: Self-Propelled w/ IMS patented Starwheel Drive
Nominal Pump Capacity¹: 795m³/hr. (1,033yds³/hr.)
Total Solids Capacity²: 199m³/hr. (260 yds³/hr.)
Dredging Depth: 6.7m (22 ft.)
Total Installed Power: 242 kW (325 HP)
Dry Weight: 13,180 kg (30,445 lbs.)
Pipe Diameter: 305mm (12 in.)
Spherical Solids Passage: 152mm (6 in.)

vd 5012lp

5012 HP

Transportability: One truck transportable (fully assembled)
Propulsion: Self-Propelled w/ IMS patented Starwheel Drive
Nominal Pump Capacity¹: 795m³/hr. (1,033yds³/hr.)
Total Solids Capacity²: 199m³/hr. (260 yds³/hr.)
Dredging Depth: 6.7m (22 ft.)
Total Installed Power: 242 kW (325 HP)
Dry Weight: 13,180 kg (30,445 lbs.)
Pipe Diameter: 254mm (10 in.)
Spherical Solids Passage: 101mm (4 in.)

vd 5012hp

7012 HP

Transportability: One truck transportable (fully assembled)
Propulsion: Self-Propelled w/ IMS patented Starwheel Drive
Nominal Pump Capacity¹: 1,135m³/hr. (1,475yds3/hr.)
Total Solids Capacity²: 284m³/hr. (371 yds3/hr.)
Dredging Depth: 9.1m (30 ft.)
Total Installed Power: 332 kW (445 HP)
Dry Weight: 21,636 kg (47,700 lbs.)
Pipe Diameter: 305mm (12 in.)
Spherical Solids Passage: 127mm (5 in.)

vd 7012hp

8012 HP

Transportability: One truck transportable (fully assembled)
Propulsion: Self-Propelled w/ IMS patented Starwheel Drive
Nominal Pump Capacity¹: 1362 m³/hr. (1,781 yd³/hr.)
Total Solids Capacity²: 340 m³/hr. (445 yd³/hr.)
Dredging Depth: 9.1m (30 ft.)
Total Installed Power: 410 kW (550 HP)
Dry Weight: 21,772 kg (48,000 lbs.)
Discharge Diameter: 305mm (12 in.)
Spherical Solids Passage: 127mm (5 in.)

vd 8012hp

¹ This represents total flow capabilities of the pump – water and solids.

² This represents theoretical maximum solids production. This is calculated based on 25% solids by volume and 1 complete hour cutting and pumping material. This estimate does not take into account material properties, time used for positioning, pumping distance or elevation. Buyer should consult IMS for production estimates based specifically around their application.
